Step by step guide for upgrading and migrating to Oracle Database 12c Release 2 (

Create the directory of the new Oracle Grid home and for the database.

mkdir -p /u01/app/12.2.0/grid
chown grid:oinstall /u01/app/12.2.0/grid
mkdir -p /u01/app/oracle/product/12.2.0/db_1
chown oracle:oinstall /u01/app/oracle/product/12.2.0/db_1

Apply recent patch :

Remove the old version and copy the new version Opatch
rm -fr /u01/app/12.1.0/grid/OPatch
rm -fr /u01/app/oracle/product/12.1.0/db_1/OPatch

cp -R OPatch /u01/app/12.1.0/grid/
cp -R OPatch /u01/app/oracle/product/12.1.0/db_1/

[root@ggsrv1 ~]# cd /media/sf_Software_and_seeds/Patch_software
[root@ggsrv1 Patch_software]# cp -R OPatch /u01/app/12.1.0/grid/
[root@ggsrv1 Patch_software]# cp -R OPatch /u01/app/oracle/product/12.1.0/db_1/
[root@ggsrv1 Patch_software]# chown -R grid:oinstall /u01/app/12.1.0/grid/OPatch
[root@ggsrv1 Patch_software]# chown -R oracle:oinstall /u01/app/oracle/product/12.1.0/db_1/OPatch
[root@ggsrv1 Patch_software]# /u01/app/12.1.0/grid/OPatch/opatch version

/u01/app/12.1.0/grid/OPatch/opatchauto apply /media/sf_Software_and_seeds/Patch_software/21255373 -log /tmp/21255373_response.txt

Upgrade Oracle Grid Infrastructure

Note: Oracle Grid Infrastructure 12.2 has added new features that require plenty of disk space in the CRS disk group. Therefore, you must expand the size of the CRS disk group before you can upgrade Oracle Grid to the new release. CRS disk group size increased to nearly 50GB

Before proceeding with the upgrade you must shutdown all Oracle Databases that are using Oracle ASM for storage.

Upgrade Oracle Grid Infrastructure :

Login as grid user

Open a terminal window and change the current directory to the directory where the Oracle Grid Infrastructure installation file was copied.

[root@ggsrv1 ~]# sudo su - grid
[grid@ggsrv1 ~]$ cd Downloads/
[grid@ggsrv1 Downloads]$ ls
[grid@ggsrv1 Downloads]$

Unzip the file to the new Grid home directory.

[grid@ggsrv1 Downloads]$ unzip -d /u01/app/12.2.0/grid

In the terminal windows, change the current directory to the new Oracle Grid directory.

[grid@ggsrv1 Downloads]$ cd /u01/app/12.2.0/grid
[grid@ggsrv1 grid]$

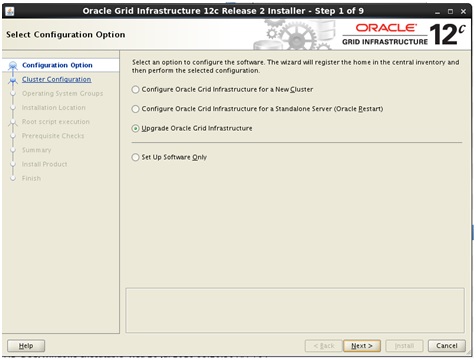

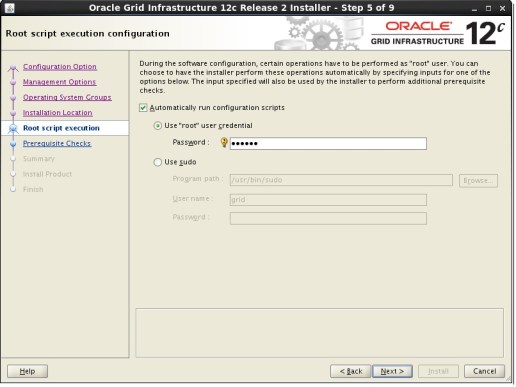

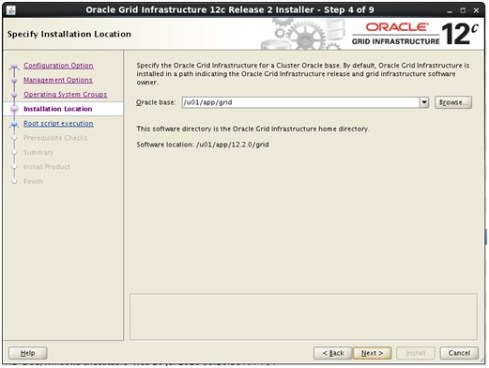

Set the ORACLE_HOME variable to the new Oracle Grid home directory then run


[grid@ggsrv1 grid]$ export ORACLE_HOME=/u01/app/12.2.0/grid

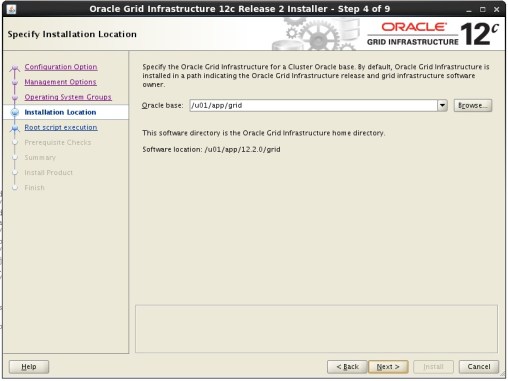

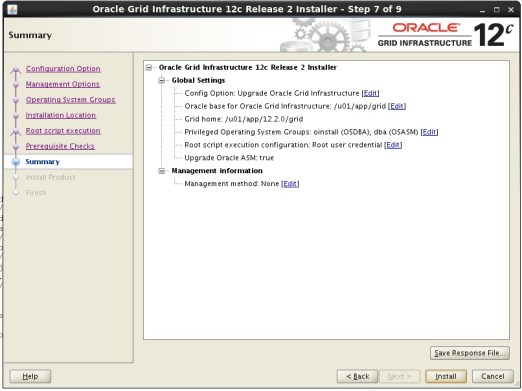

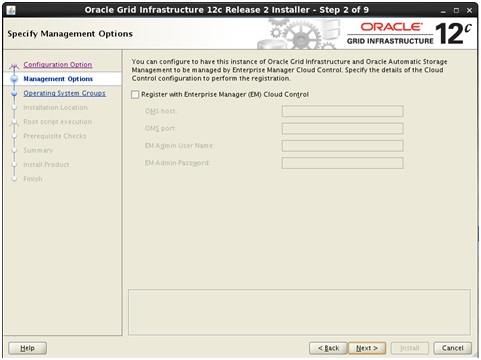

[grid@ggsrv1 grid]$ ./



In the Putty window, verify the upgrade has been successfully concluded:

/u01/app/12.2.0/grid/bin/crsctl check cluster -all
/u01/app/12.2.0/grid/bin/crsctl query crs activeversiona
[root@ggsrv1 ~]# sudo su - grid
[grid@ggsrv1 ~]$ cp /u01/app/12.1.0/grid/network/admin/*.ora $ORACLE_HOME/network/admin

Upgrading Oracle Database

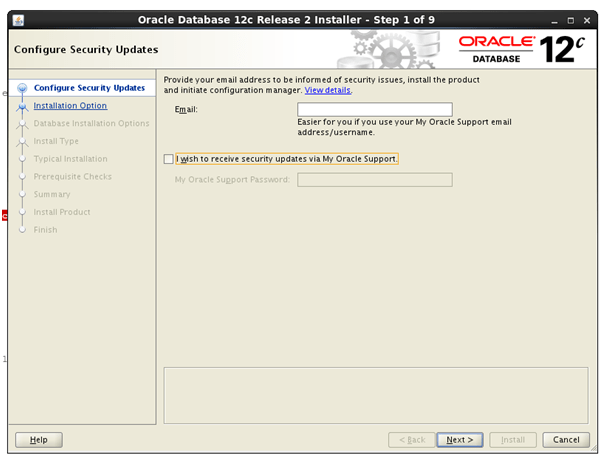

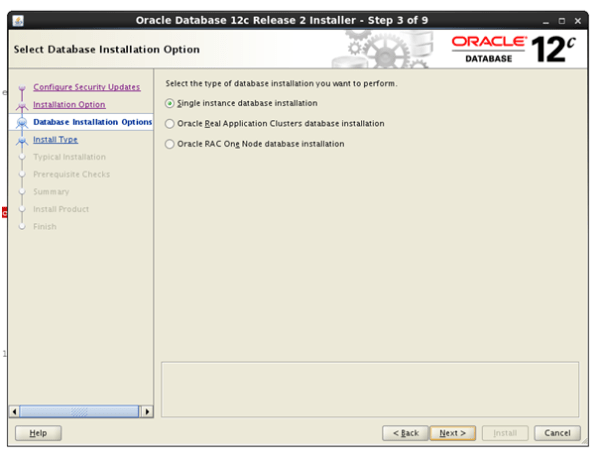

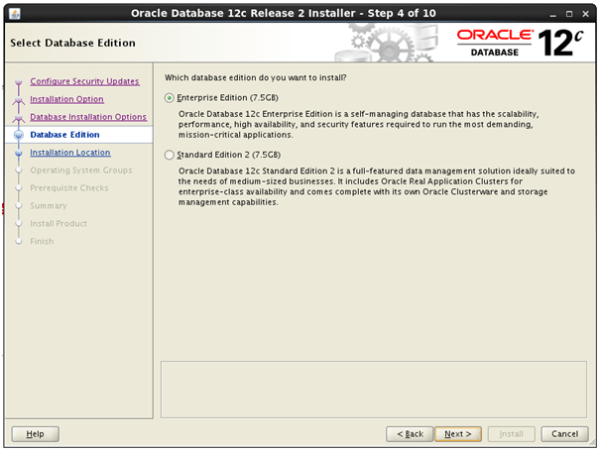

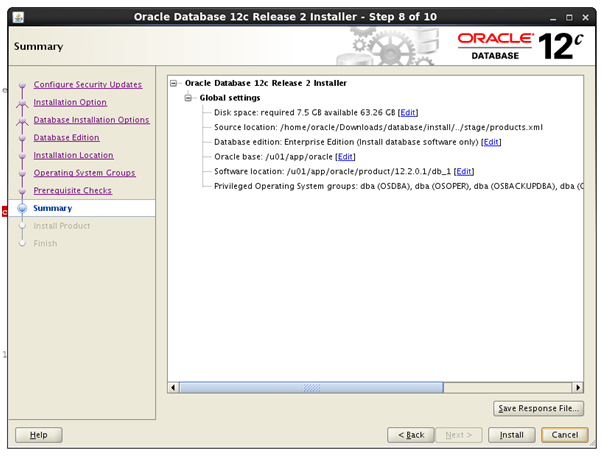

Installing Oracle Database 12.2 Software

cd /media/sf_staging/12.2/database/
mkdir -p /u01/app/oracle/product/12.2.0/db_1
chown oracle:oinstall /u01/app/oracle/product/12.2.0/db_1


In the Putty session, switch the current user to oracle then run the Pre-Upgrade Information Tool (preupgrade.jar) by issuing the following command. This is a single-line command. Make sure you copy it all before you paste it in the Putty window.

/u01/app/oracle/product/12.1.0/db_1/jdk/bin/java -jar /u01/app/oracle/product/12.2.0/db_1/rdbms/admin/preupgrade.jar FILE TEXT DIR /home/oracle/scripts

The command should give the following output:
Preupgrade generated files:


As sysdba, run the preupgrade_fixups.sql script.

sqlplus / as sysdba
# to obtain list of invalid objects:
# compile invalid views
# to obtain list of the materialized views:

Gather the optimizer statistics on the dictionary objects. Run the following command as sys user. This is recommended action to reduce the upgrade time.


Purge the Recycle Bin


Make sure that the parameter SEC_CASE_SENSITIVE_LOGON is set to TRUE.


Upgrading Database

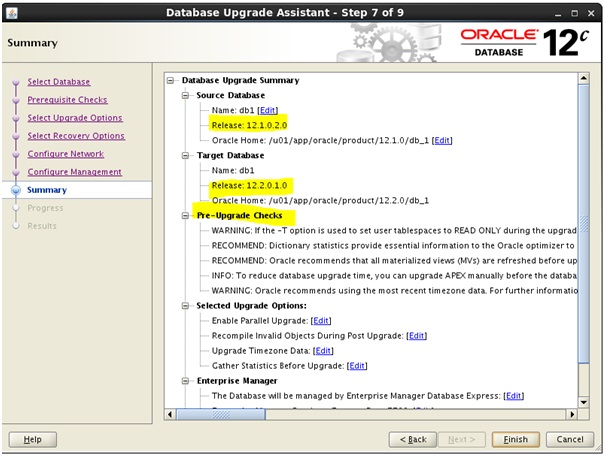

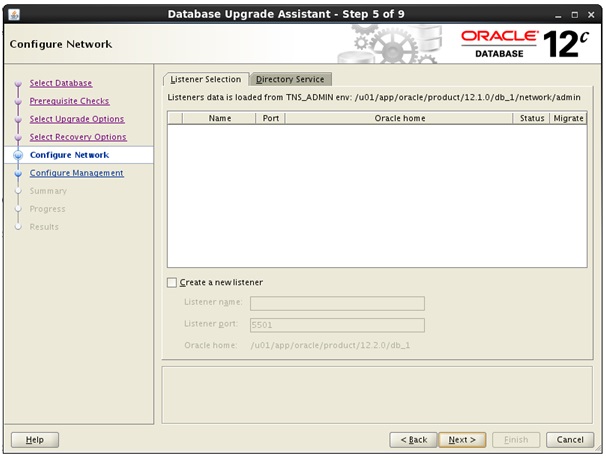

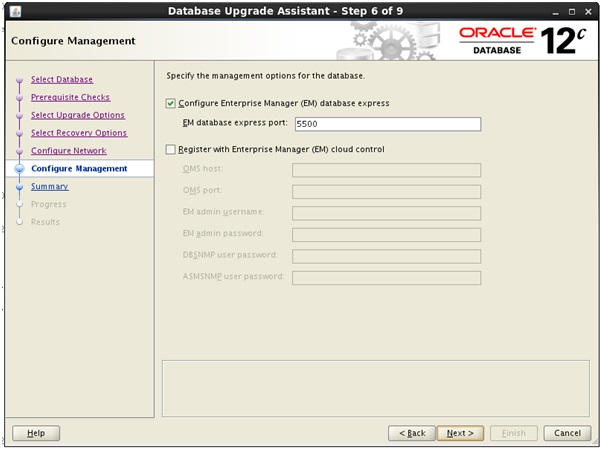

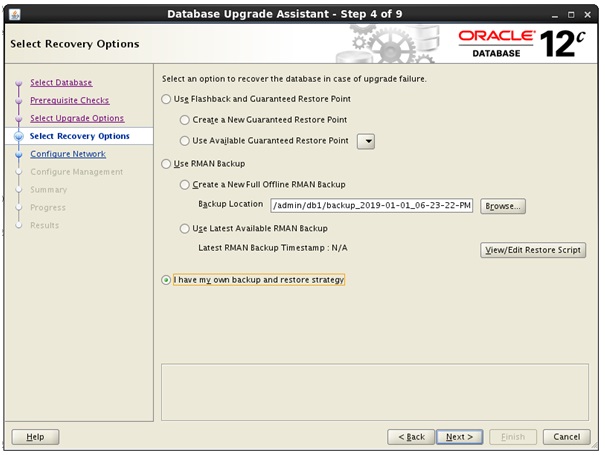

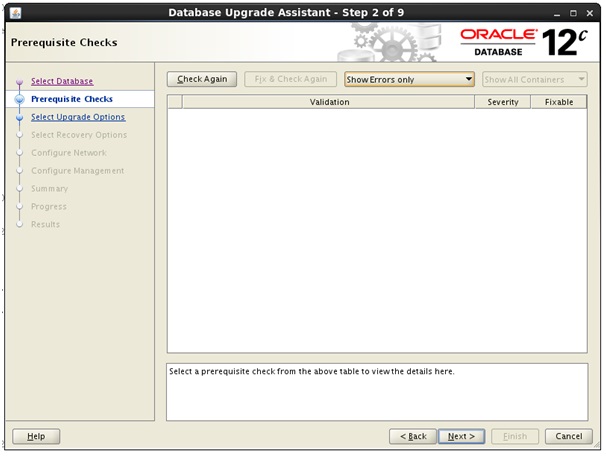

Start the dbua utility by issuing the following commands:

export ORACLE_HOME=$ORACLE_BASE/product/12.2.0/db_1

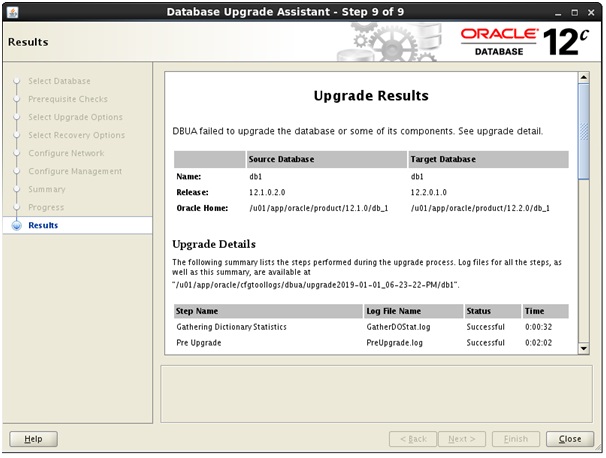

Post-upgrade Tasks

SQL> select * from v$version;
SQL> set line 200
SQL> select * from v$version;
BANNER                                                                               CON_ID
-------------------------------------------------------------------------------- ----------
Oracle Database 12c Enterprise Edition Release - 64bit Production              0
PL/SQL Release - Production                                                    0
CORE      Production                                                                0
TNS for Linux: Version - Production                                            0
NLSRTL Version - Production                                                    0

In the Putty window, switch current user to oracle and fix the ORACLE_HOME variable setting in .bash_profile.

vi .bash_profile

Copy the tnsnames.ora file from the old Oracle home directory to the upgraded Oracle home directory.

cp /u01/app/oracle/product/12.1.0/db_1/network/admin/*.ora /u01/app/oracle/product/12.2.0/db_1/network/admin

Make sure the current user in the Putty session is oracle then start SQL*Plus and execute the postupgrade_fixups.sql script:

[oracle@ggsrv1 ~]$ sqlplus / as sysdba
SQL*Plus: Release Production on Wed Jan 2 00:52:21 2019
Copyright (c) 1982, 2016, Oracle.  All rights reserved.
Connected to:
Oracle Database 12c Enterprise Edition Release - 64bit Production

SQL> @/home/oracle/scripts/postupgrade_fixups.sql
SQL> !

[oracle@ggsrv1 ~]$  srvctl status database -d db1
Database is running.
